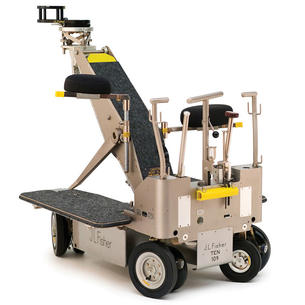

JL Fisher 10 Dolly Package

Recognized as the industry standard, the Model 10 Dolly is manufactured from the highest quality materials and components to meet the demanding needs of the motion picture, television and video industries. This stable, reliable Dolly offers operators versatile features and a wide variety of accessories. The Model 10 Dolly is smooth, quiet and easy to use, with a reputation for being safe, well-made and low maintenance.

Technical Specs
Max. lift beam elevation with Standard Level Head (SLT) 62.625"
Min. lift beam elevation with Standard Level Head (SLT) 13.75"
Min. lift beam elevation with Low Level Head (LHT) 3.125"
Vertical beam travel 46.875"
Lift capacity 500lbs.
Length 55.5"
Width 26.5"
Height (operating) 38.625"
Height (folded) 25"
Minimum turn radius (round steering) 22"
Minimum turn radius (conventional steering) 44"
Carrying weight 420lbs.
Maximum Dolly load capacity 1200lbs.
Lifts per system charge 7
