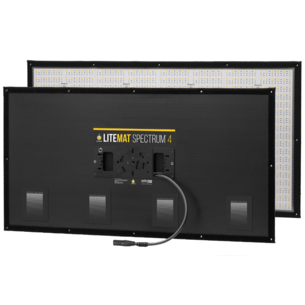

Litemat Spectrum 4

LiteMat Spectrum is a Full Color LED pane that builds on the existing Litemat Line using may of the same head mounted accessories you are already familiar with. Including new ballasts that control the fixture in tons of ways such as CCT, Full Color, Pixel Contol and more. Spectrum is also certified color space compliant and with the new Spectrum OS enables many new features beneficial to your production.

  • Power: 200W
  • Voltage Input: 48 VDC Power, 5 VDC Signal (PDX Connector)
  • Current: 2.08A
  • CCT Range: 2000K-11,000K
  • CRI: 95+
  • TLCI: 95+
  • Total LED Quantity: 5184
  • Lumens: 13904 (Tungsten), 16720 (Daylite)
  • Colored Light: Full RGB+W color gamut with Hue and Saturation Control
  • Green-Magenta Adjustment: Yes
  • Weight: 7.4 lb., (3.4 kg.) w/ Cable.
  • Dimensions: Height: 21 in. (533 mm)
  • Width: 40 in. (1016 mm)
  • Depth: 0.9 in. (23 mm)
  • Operating Temperature: -10°C to +50°C (-14°F to +122°F)
  • Cable: Attached PDX Cable, 36 in. lead
