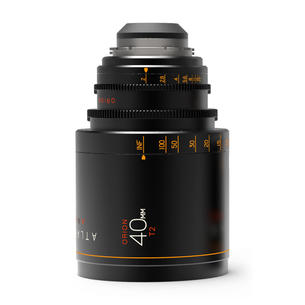

Atlas Orion Anamorphic 40mm T2

Atlas 1.6x LF Extender available

Key features include:

  • Squeeze Factor: 2x

  • Focal Length: 40mm
  • T-Stop: T2 - T16

  • Close Focus: 2'(24")

  • Front Diameter: 114mm

  • Coverage: Super: 35(31mm)

  • Mount: PL or EF

The Atlas Lens Company Orion 40mm T2.0 Anamorphic is a premium PL-mount lens that provides a cinematic, 2x-squeeze image with fantastic bokeh, remarkable flare; all while minimizing breathing.

The Anamorphic Look. The Orion Anamorphic lenses provide a clean, oval shaped bokeh you might expect out of more expensive anamorphics. The Orions produce a unique but well-controlled anamorphic lens flare. Shining a light toward the lens in the frame will produce a wonderful blue-hued flare that goes almost edge to edge depending on light strength.

Standardized Features. All the Orion Anamorphic lenses have the same front lens diameters, focus, and iris ring positions. This allows for super-fast lens changes just by swinging your matte box and dropping your follow focus without moving their positions. Markings in feet appear on both sides making it easy for ACs and focus-pullers to do their jobs. The entire Orion series boasts the same industry-prevalent 0.8 pitch gears and 114mm front diameters.
